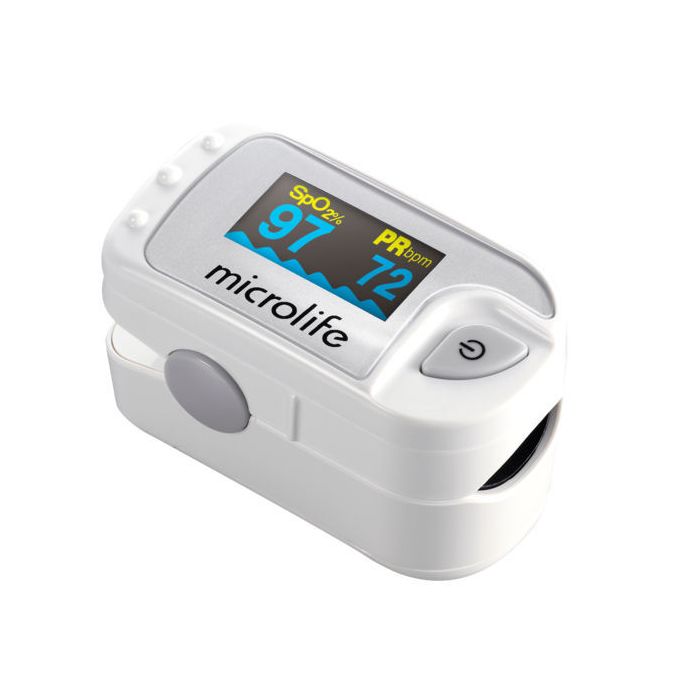

Microlife Oxy 300 Pulsioximetro

Presentation

1 pulse oximeter

2 AAA batteries

1 case

1 carrying strap

How to use

Insert the batteries as described in the section "Inserting the batteries".

2. Insert the side of a finger (fingernail up; index or middle finger recommended) into the finger opening of the device. Be sure to fully insert your finger so that the sensors are completely covered by your finger.

3. Release the device so that it is fitted to your finger.

4. Press the ON/OFF button 1 to turn the device on.

5. Do not move your finger during the test. It is recommended that you do not move your body while the device takes the reading.

6. The measurement values will be shown on the display after a few seconds.

7. Remove your finger from the device. The display will indicate "Finger Out".

8. The device automatically switches off about 8 seconds after the finger is removed from the device.

The height of bar graph 5 shows the indication of pulse and strength signal. The bar should be over 30% for an adequate reading.

The device must be able to measure the pulse properly to get an accurate SpO2 measurement. Check that nothing is hindering the pulse measurement before relying on the SpO2 measurement.

The maximum application time in a single area should be less than 30 minutes to ensure proper sensor alignment and skin integrity.

Product Specifications

Determine oxygen saturation (SpO2) and heart rate (pulse)
Simple to operate and comfortable measurement
Lightweight and portable
2-color OLED display
6 different display modes
10 adjustable brightness levels
Low battery indication
Auto power off
With carrying handle

Model no: OXY 300
Size: 56 x 31 x 30.5 mm
Weight: 56g (with batteries)
Batteries: 2 units. 1.5 V alkaline batteries, size AAA
Pulse rate measurement range: 30 ~ 250 bpm
SpO2 measurement range: 70 ~ 100%
